Alerts
SMS and email alerts* when a drone enters your monitored airspace, and a weekly summary email.
AirDetect Pro Long Range
At a glance
- Detects
- Remote ID drones and older DJI drones
- Range
- Up to 20 km for Remote ID and 8 km for older DJI drones, in ideal conditions
- Installation
- Fixed, on a mast or roof. Power only, SIM card included
- Best for
- Harbours, airports and military sites
Bought or rented. Price on request.
The AirDetect Pro Long Range is AirPlate’s longest-reaching fixed sensor. It scans for Remote ID drones and older DJI drones at the same time, and reports every detection to the AirPlate app: you see the drone and, often from the very first detection, where the pilot is.
What it detects
Section titled “What it detects”Remote ID drones
Detected
- 20 km
- in ideal conditions
- 6 km
- in urban environments
2.4 GHz · Bluetooth and Wi-Fi Beacon
Older DJI drones
Detected
- 8 km
- in ideal conditions
- 5 km
- in urban environments
5.8 GHz · DJI DroneID, DJI Gen 2 and 3
It scans both bands at the same time. Which drones each kind of scanning covers is in What it detects.

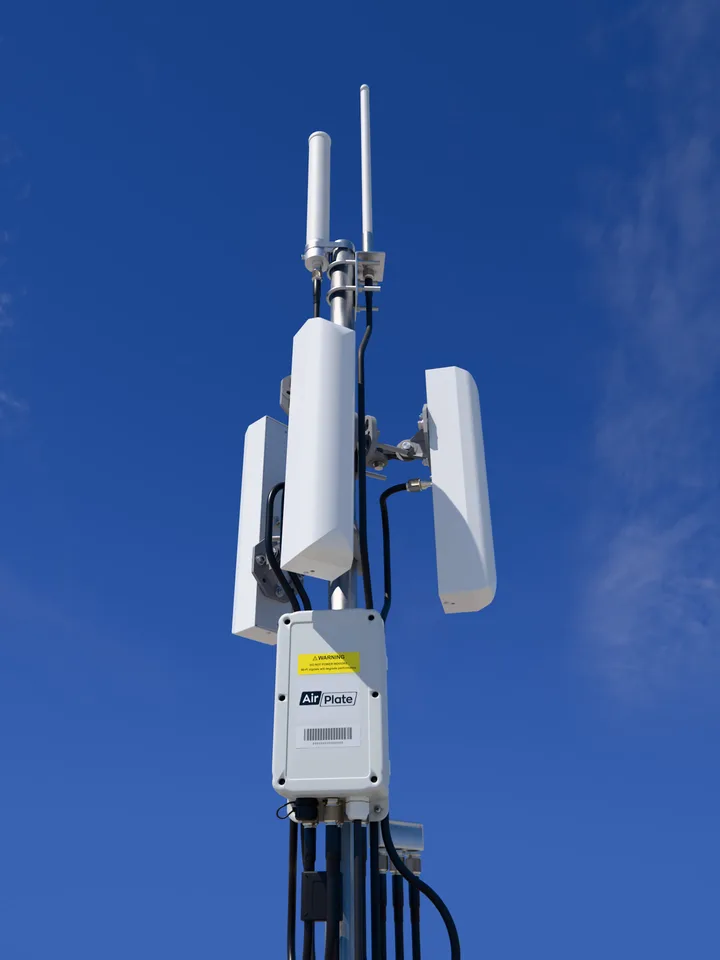

What’s on the mast
Section titled “What’s on the mast”- Omni antennas
Two, on a bracket at the top of the mast - Tri-sector antennas
Three, around the mast - Sensor enclosure
The sensor itself. It needs only power; a SIM card is included.
Installation
Section titled “Installation”It needs only power: a SIM card is included, so there is no network to set up. Mount it on a mast or roof, above the skyline: a higher position increases the range. It is rated for −20 °C to +45 °C.
Once it is running, its status shows on the Map page, in the AirDetect Systems panel. See Map.
Alerts and data
Section titled “Alerts and data”Integration
Detections can feed your security operations dashboard, and the sensor fits into layered detection systems.
Your data
Detection data stays in your AirPlate account and is not shared with third parties.
* SMS and email alerts, including the weekly summary email, need an active subscription to the AirPlate cloud platform.
Technical specifications
Section titled “Technical specifications”| Detection | |
|---|---|
| Drones | Remote ID and older DJI drones (DJI Gen 2 and 3) |
| Remote ID range | 20 km in ideal conditions, 6 km urban |
| Older DJI range | 8 km in ideal conditions, 5 km urban |
| Frequencies | 2.4 GHz (Remote ID) and 5.8 GHz (older DJI), at the same time |
| Antennas | 2 omni and 3 tri-sector, 3–10.2 dB gain |
| Installation | |
|---|---|
| Requirements | Power only, SIM card included |
| Operating temperature | −20 °C to +45 °C |
| Alerts and data | |
|---|---|
| Alerts | SMS and email, weekly summary email* |
| Integration | Feeds your security operations dashboard, fits layered detection systems |
| Data | Stays in your AirPlate account, not shared with third parties |
* SMS and email alerts, including the weekly summary email, need an active subscription to the AirPlate cloud platform.
Long Range or Pro Long Range?
Section titled “Long Range or Pro Long Range?”Both detect Remote ID drones at up to 20 km in ideal conditions. The AirDetect Long Range scans for Remote ID only, on 2.4 GHz. The Pro Long Range adds a 5.8 GHz scan for older DJI drones, at the same time. All four sensors side by side: Sensors.
