Alerts
SMS and email alerts* when a drone enters your monitored airspace, and a weekly summary email.
AirDetect Long Range
At a glance
- Detects
- Remote ID drones
- Range
- Up to 20 km in ideal conditions, 6 km urban
- Coverage
- 360° from one installation point
- Installation
- Fixed, on a mast or roof. Power only, SIM card included
- Best for
- Critical infrastructure, airfields and military sites
Bought or rented. Price on request.
The AirDetect Long Range covers wide open areas in a full circle from one spot. Three tri-sector antennas give 360° coverage from a single installation point, and it runs with no operator. Every detection goes to the AirPlate app: you see the drone and, often from the very first detection, where the pilot is.
What it detects
Section titled “What it detects”Remote ID drones
Detected
- 20 km
- in ideal conditions
- 6 km
- in urban environments
2.4 GHz · Bluetooth and Wi-Fi Beacon
Older DJI drones
Not detected
This sensor does not scan for DJI DroneID. Sensors that do
For older DJI drones, the AirDetect Pro Long Range adds a 5.8 GHz scan. Which drones have Remote ID is in What it detects.

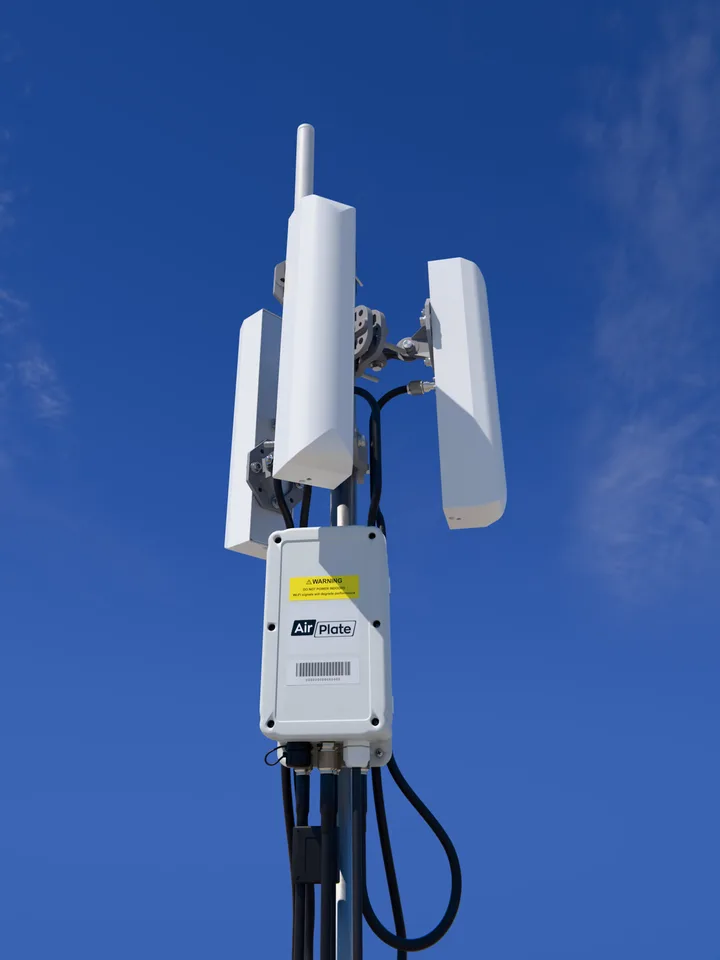

What’s on the mast
Section titled “What’s on the mast”- Omni antenna
On top of the mast - Tri-sector antennas
Three, around the mast: together they cover 360° - Sensor enclosure
The sensor itself. It needs only power; a SIM card is included.
Installation
Section titled “Installation”It needs only power: a SIM card is included, so there is no network to set up. Mount it on a mast or roof, above the skyline: a higher position increases the range. It is rated for −20 °C to +45 °C.
Once it is running, its status shows on the Map page, in the AirDetect Systems panel. See Map.
Alerts and data
Section titled “Alerts and data”Integration
Detections can feed your security operations dashboard, and the sensor fits into layered detection systems.
Your data
Detection data stays in your AirPlate account and is not shared with third parties.
* SMS and email alerts, including the weekly summary email, need an active subscription to the AirPlate cloud platform.
Technical specifications
Section titled “Technical specifications”| Detection | |
|---|---|
| Drones | Remote ID only (no older DJI drones) |
| Maximum range | 20 km in ideal conditions |
| Urban range | 6 km |
| Frequency | 2.4 GHz |
| Antennas | 3 tri-sector, 7 dB gain, 360° coverage |
| Installation | |
|---|---|
| Requirements | Power only, SIM card included |
| Operating temperature | −20 °C to +45 °C |
| Alerts and data | |
|---|---|
| Alerts | SMS and email, weekly summary email* |
| Integration | Feeds your security operations dashboard, fits layered detection systems |
| Data | Stays in your AirPlate account, not shared with third parties |
* SMS and email alerts, including the weekly summary email, need an active subscription to the AirPlate cloud platform.
