Alerts
SMS and email alerts* when a drone enters your monitored airspace, and a weekly summary email.
AirDetect Pro
At a glance
- Detects
- Remote ID drones and older DJI drones
- Range
- Up to 6 km
- Installation
- Fixed, on a mast or roof. Power only, SIM card included
- Best for
- Critical infrastructure, airfields and key facilities
Bought or rented. Price on request.
The AirDetect Pro is a fixed sensor that watches a single site around the clock. It runs continuously with no operator present, and reports every detection to the AirPlate app: you see the drone and, often from the very first detection, where the pilot is.
What it detects
Section titled “What it detects”Remote ID drones
Detected
- 6 km
- maximum range
2.4 GHz · Bluetooth and Wi-Fi Beacon
Older DJI drones
Detected
- 6 km
- maximum range
5.8 GHz · DJI DroneID, DJI Gen 2 and 3
The signal gets sparse at a distance: at close range, 0 to 1 km, it records 40 or more detections per minute. Which drones each kind of scanning covers is in What it detects.

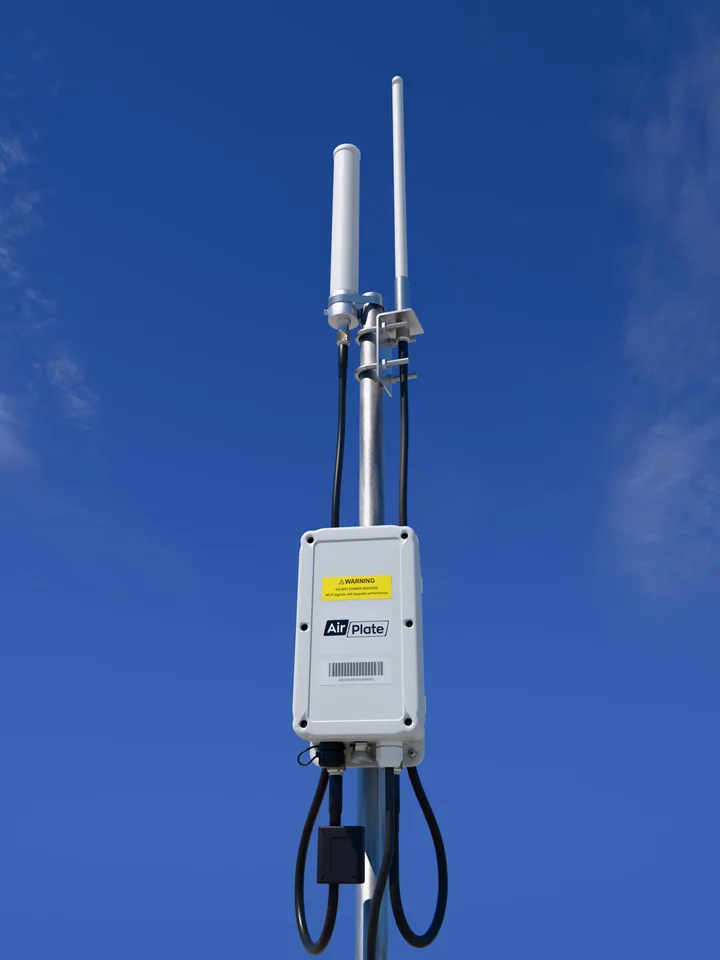

What’s on the mast
Section titled “What’s on the mast”- Antennas
Two rod antennas, on a bracket at the top of the mast - Sensor enclosure
The sensor itself. It needs only power; a SIM card is included.

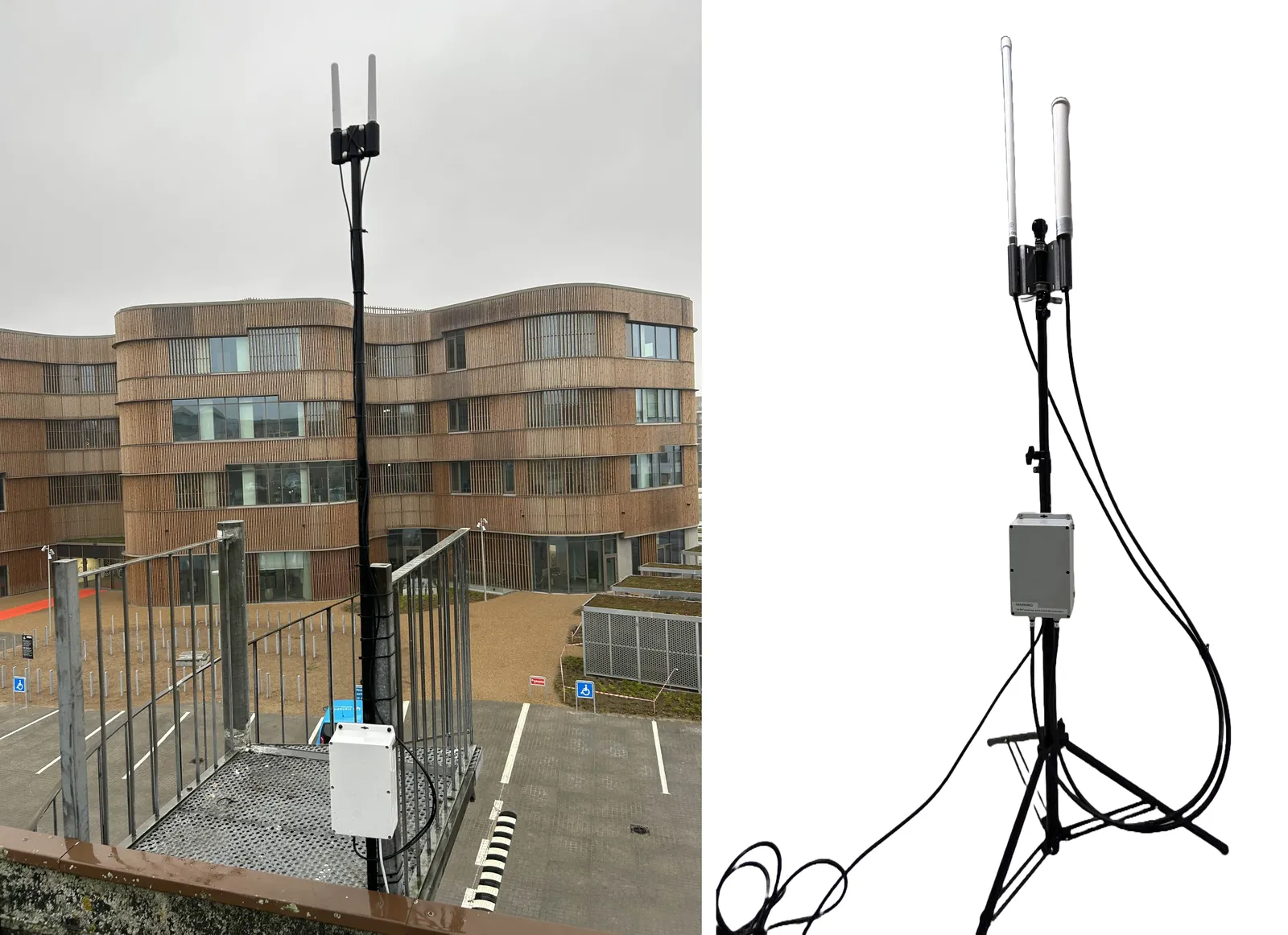

Installation
Section titled “Installation”It needs only power: a SIM card is included, so there is no network to set up. Mount it on a mast or roof, above the skyline: a higher position increases the range. It works outdoors, with a clear line of sight to the sky; buildings and other obstructions can shorten the range.
Once it is running, its status shows on the Map page, in the AirDetect Systems panel. See Map.
Alerts and data
Section titled “Alerts and data”Every site on one map
One dashboard covers all your AirDetect Pro installations.
Integration
Detections can feed your security operations dashboard.
Your data
Detection data stays in your AirPlate account and is not shared with third parties.
* SMS and email alerts, including the weekly summary email, need an active subscription to the AirPlate cloud platform.
Technical specifications
Section titled “Technical specifications”| Detection | |
|---|---|
| Drones | Remote ID and older DJI drones (DJI Gen 2 and 3) |
| Range | 0–6 km, Remote ID and older DJI, sparse signal at a distance |
| Close range | 40 or more detections per minute at 0–1 km |
| Antennas | 2.4 GHz: 6 dB, 25° vertical beam. 5.8 GHz: 10.2 dB, 14° beam |
| Installation | |
|---|---|
| Requirements | Power only (220–250 V AC), SIM card included |
| Weight | 1.5 kg |
| Operating temperature | −20 °C to +45 °C |
| Alerts and data | |
|---|---|
| Alerts | SMS and email, weekly summary email* |
| Integration | Feeds your security operations dashboard |
| Data | Stays in your AirPlate account, not shared with third parties |
* SMS and email alerts, including the weekly summary email, need an active subscription to the AirPlate cloud platform.
